Aluminum 5083 Adapter Plate 10mm with Holes

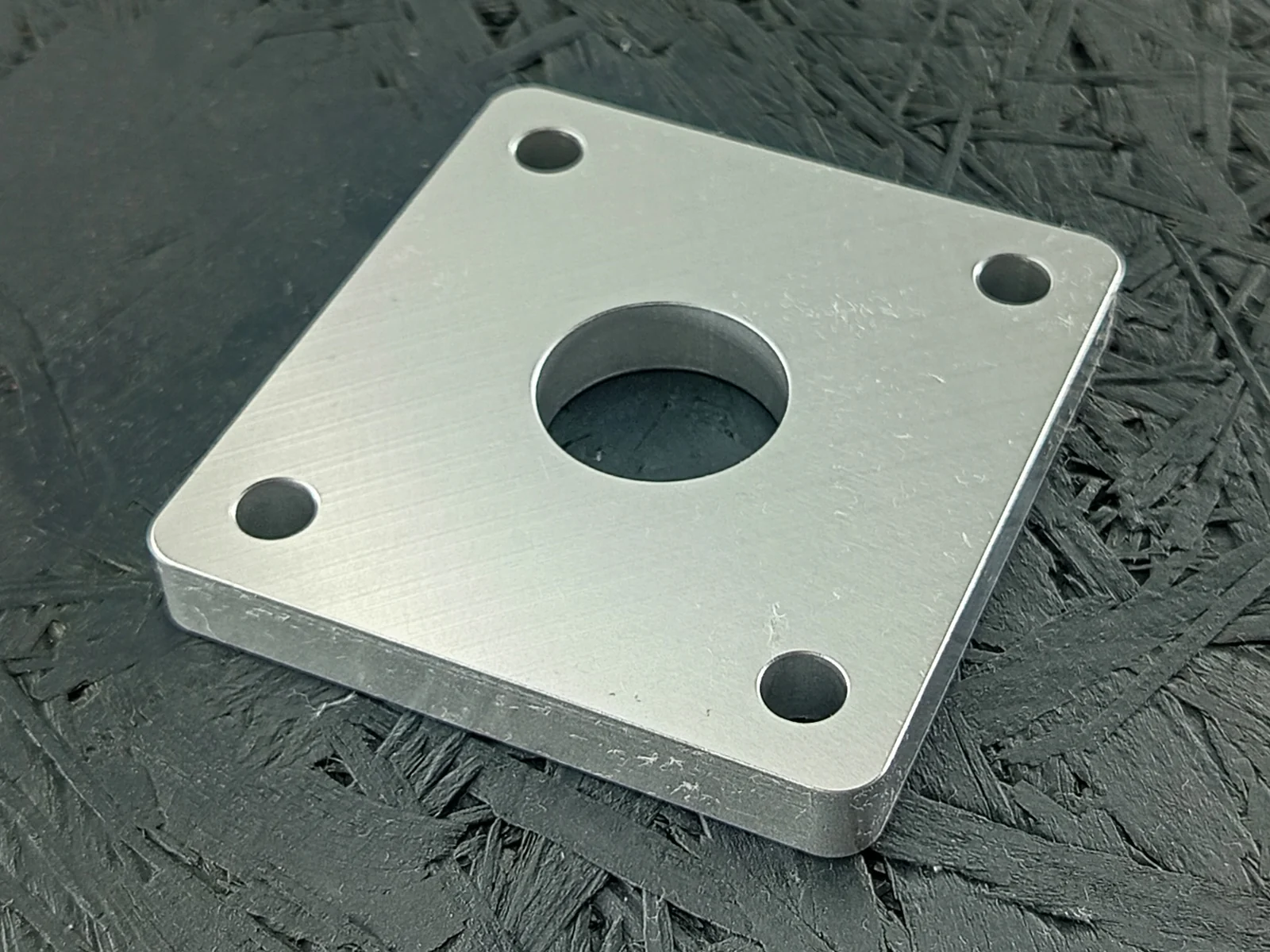

CNC milled adapter plate made from 10mm Aluminum 5083 with a central bore and four mounting holes.
Upload STEP fileMilling video
Hier sieht man den kompletten Weg von der Datei zum fertigen Bauteil. Der Prozess ist ziemlich direkt:
Man lädt die STEP-Datei hoch, wählt das Material
und bekommt sofort ein Angebot.
Danach geht es direkt in die Fertigung. Das Teil wird gefräst,
sauber entgratet und am Ende nochmal genau kontrolliert. Das war's schon.
Features
Manufacturing example
This example showcases a precisely CNC milled adapter plate made from 10mm thick Aluminum 5083. The component features a central through-hole and four additional holes for mounting. Aluminum 5083 is known for its good weldability and high corrosion resistance, making it ideal for marine and mechanical engineering applications. Manufactured as a single piece, it demonstrates the capabilities of single-part production.
