Manufacturing example · Adapter plate · Aluminium 5083 · 20. mm

Aluminium 5083 adapter plate with hole and slots

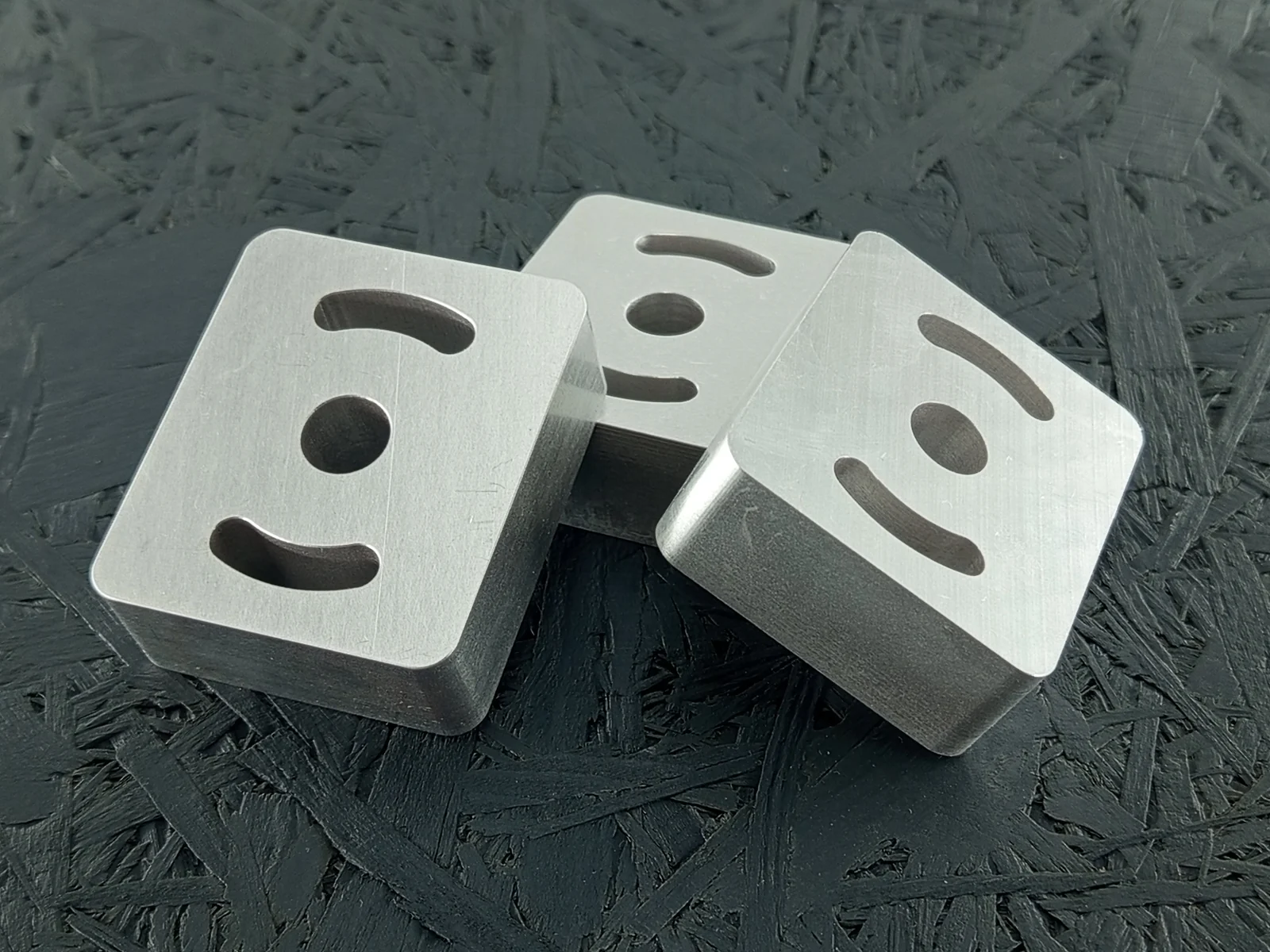

CNC-gefräste Adapterplatte aus Alu 5083 mit Bohrung und Langlöchern

This manufacturing example shows a CNC-machined adapter plate made from aluminium 5083 with a central hole, slots and a clean milled outer contour.

Upload STEP file
Material / thicknessAluminium 5083 · 20. mm
Lead time9–14 working days
Example price2 pcs. at 19.65 € netPrice date 2026-07-04

Features

Holes Slots Contour milling Chamfers

Manufacturing example

The adapter plate was machined from 20 mm thick aluminium 5083. Visible features include a central hole, slots, chamfers and a precisely milled outer contour. Parts like this are commonly used for mounting points, fixtures and mechanical adapters.
