Alu 5083 Mounting Plate 10mm with Holes

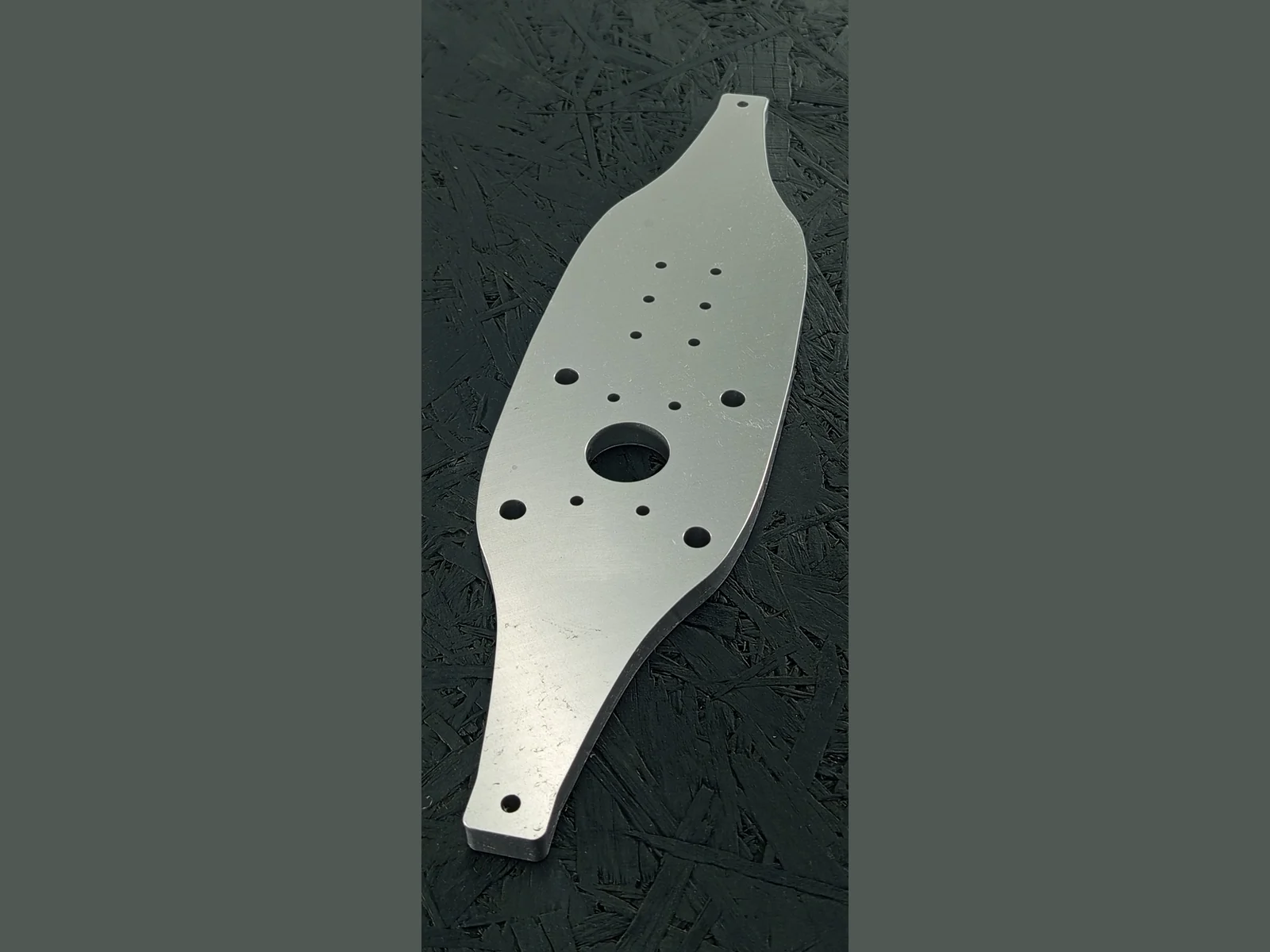

CNC milled mounting plate made from 10mm Aluminium 5083 with various holes and complex contour milling.
Upload STEP fileMilling video
Das hier ist kein Wasserstrahlteil, auch wenn es so aussehen mag.
Es wurde direkt nach Kundenwunsch
aus einer STEP-Datei gefräst.
Der ganze Prozess läuft dabei online ab. Man lädt die Datei hoch, wählt das gewünschte Material aus
und bekommt sofort ein Angebot für sein individuelles Bauteil.
Features
Manufacturing example
This example demonstrates precise CNC milling of a mounting plate made from 10mm thick Aluminium 5083. The component features multiple holes and a complex outer contour, manufactured as a single piece. Ideal for mechanical engineering and prototypes.
