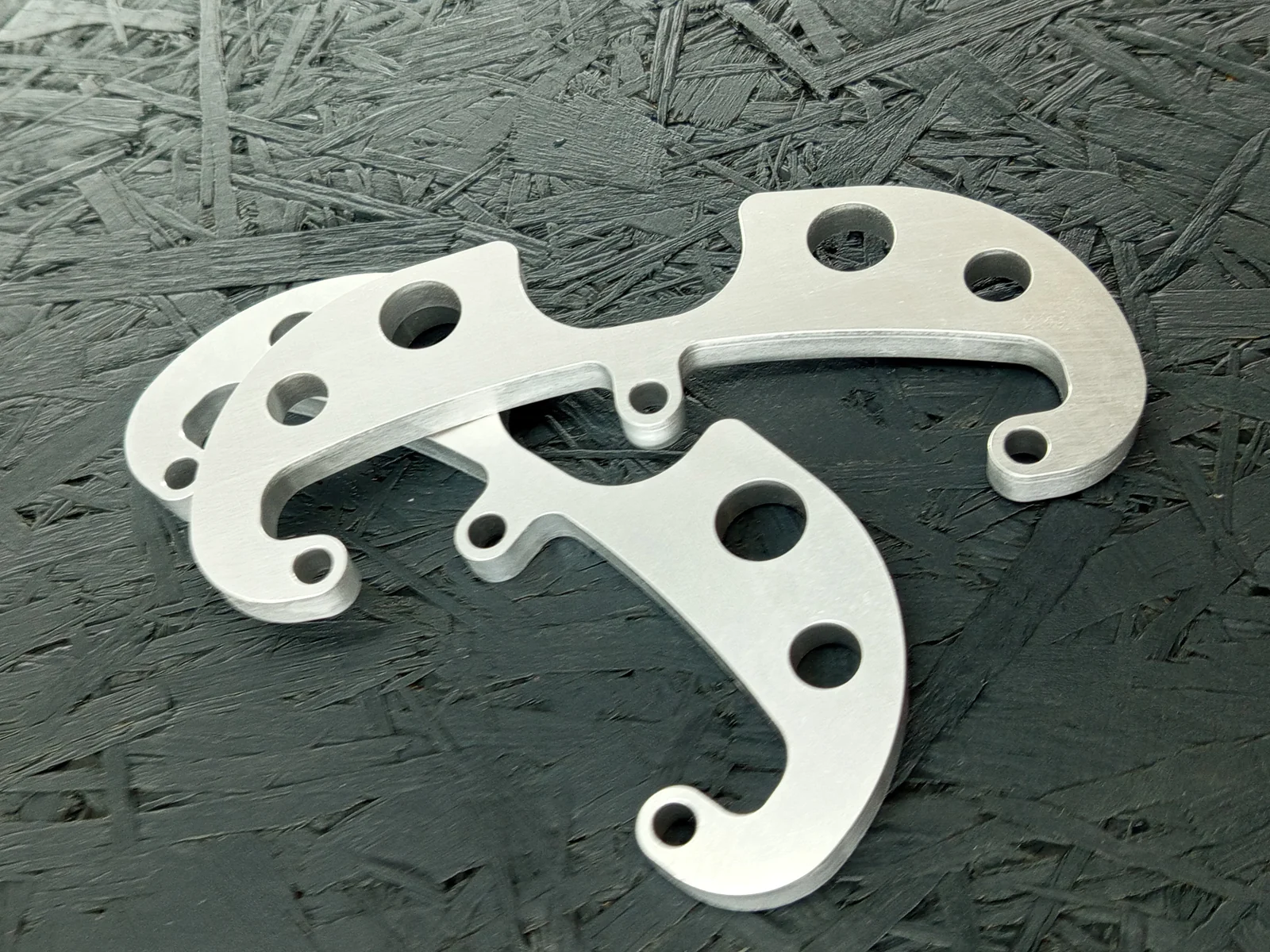

CNC Milled Bracket from Alu 5083, 8mm
Precision milled bracket from 8mm Aluminium 5083 with complex contour and holes.
Upload STEP fileMilling video
Das hier ist der komplette Weg von der Datei zum fertigen Bauteil.
Am Anfang war das nämlich nur eine einzige STEP-Datei.
Also reine digitale Information.
Daraus wird dann die exakte Außenkontur gefräst, alle Bohrungen gesetzt
und nach Kundenwunsch fertiggestellt. So wird aus dem Datensatz ein echtes Bauteil.
Features
Manufacturing example
Example of a CNC milled bracket made from 8mm thick Aluminium 5083. This component demonstrates the capabilities of 2D CNC machining for complex contours and precise holes. Ideal for mechanical engineering and prototypes.
