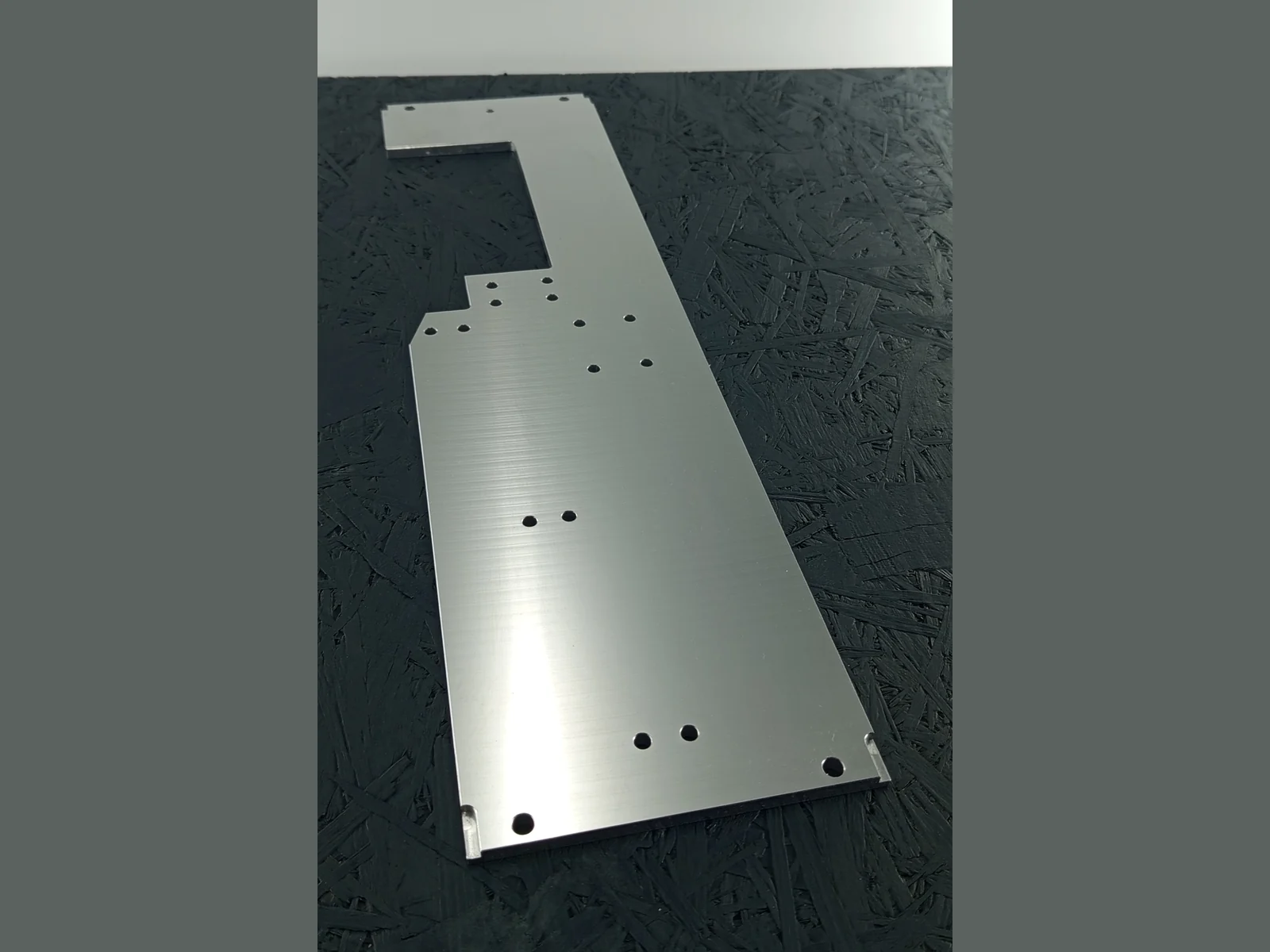

CNC Milled Mounting Plate from Alu 5083
Precisely CNC milled mounting plate made from 6 mm thick Aluminium 5083 with numerous holes and complex contour milling.
Upload STEP fileMilling video
Das hier ist kein Wasserstrahlteil, auch wenn die Kanten sauber aussehen.
Am Anfang war das nur
eine einzige STEP-Datei.
Die wird direkt online kalkuliert, ohne langes Warten auf ein Angebot.
Danach startet die Fertigung: Das Teil wird gefräst, sauber entgratet und am Ende nochmal genau kontrolliert.
Features
Manufacturing example
This CNC milled component, a mounting plate made from seawater-resistant Aluminium 5083, has a material thickness of 6 mm. Precise 3-axis machining was used to create the complex outer contour and numerous holes. An example of functional component manufacturing in mechanical engineering.
