Alu 7075 Adapter Plate 10mm with Holes
CNC-milled adapter plate made of Alu 7075, 10 mm thick, with precise holes.
Upload STEP fileMilling video
Das hier ist der komplette Weg von der Datei zum fertigen Bauteil.
Man startet mit einer einfachen STEP-Datei für ein flaches Teil mit klarer Kontur.
Der ganze Prozess läuft online:
Datei hochladen, das Angebot wird sofort live kalkuliert.
Und das ist dann das fertige, einfach online gefräste Teil.
Features
Manufacturing example

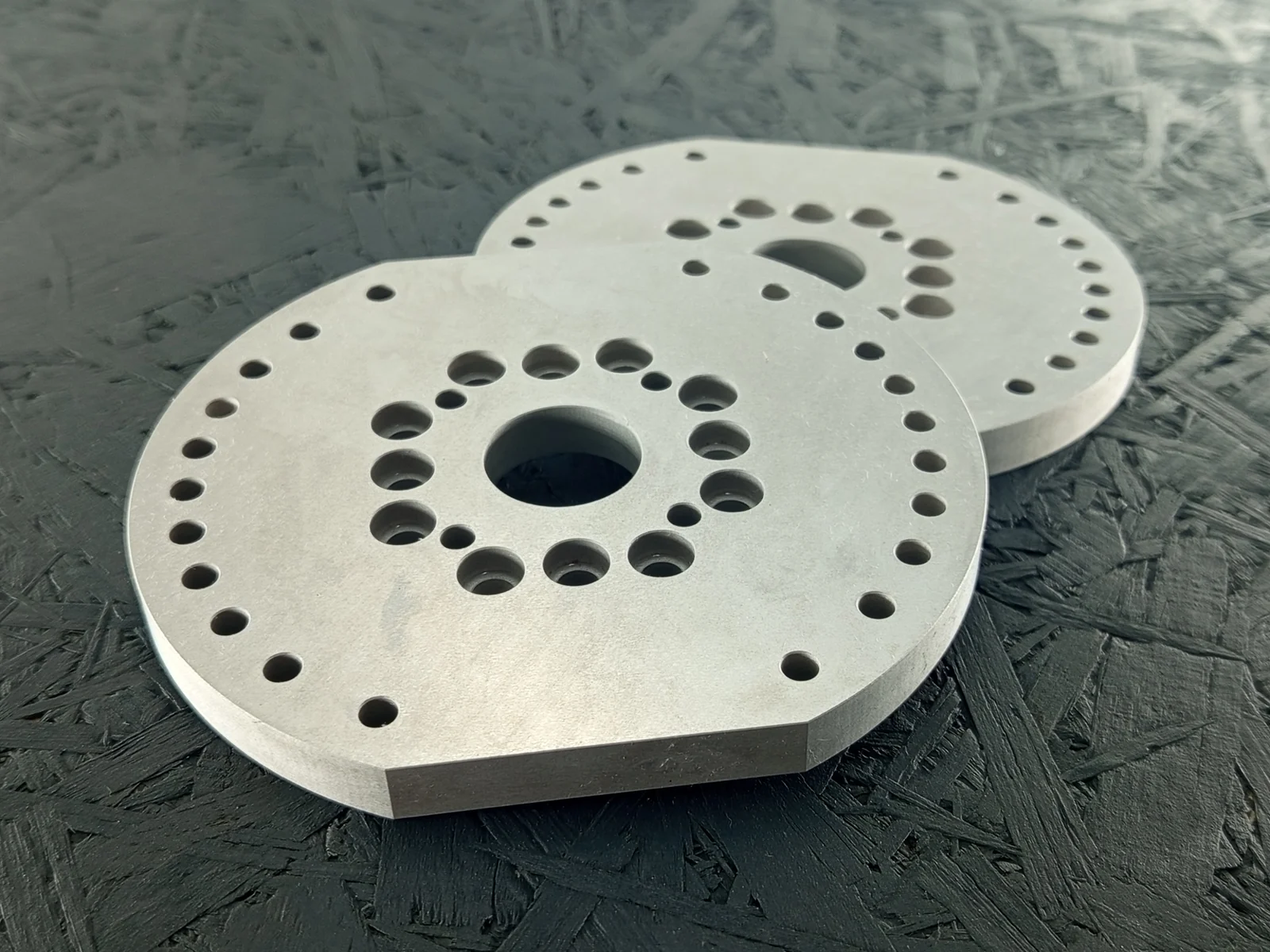

This example showcases a CNC-milled adapter plate made from high-strength Aluminium 7075 with a thickness of 10 mm. The plate features numerous precise holes and a central cutout, ideal for mounting or connection tasks in mechanical engineering and robotics. Manufactured in a quantity of 2.
Similar CNC parts

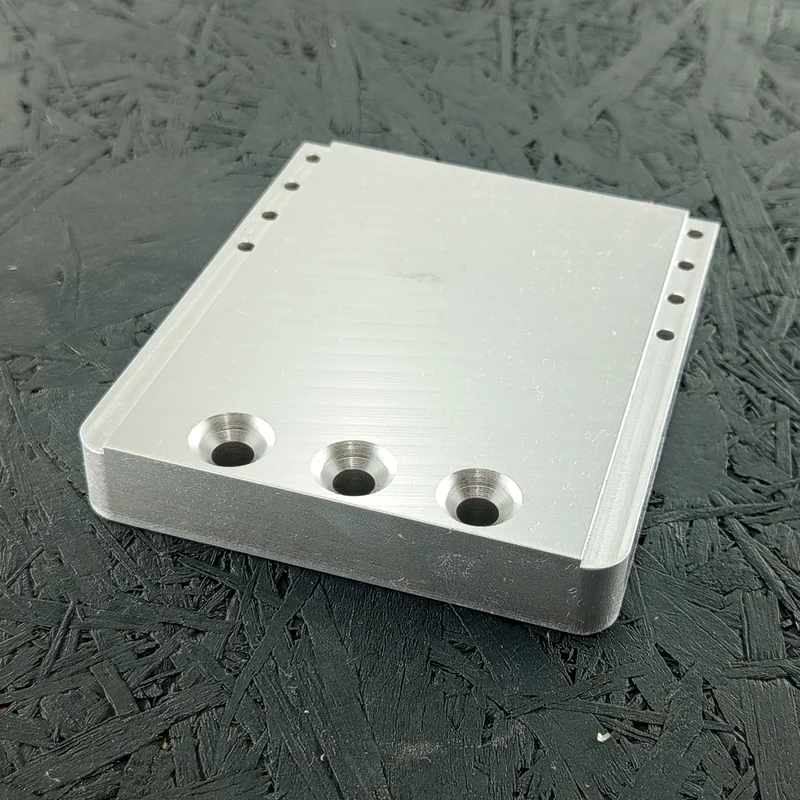

1 pcs. at 53.35 € net Alu 7075 Machine Component 20mm with Counterbores and Holes
CNC milled machine component made from Alu 7075, 20 mm thick, featuring precise counterbores and holes.
View details →

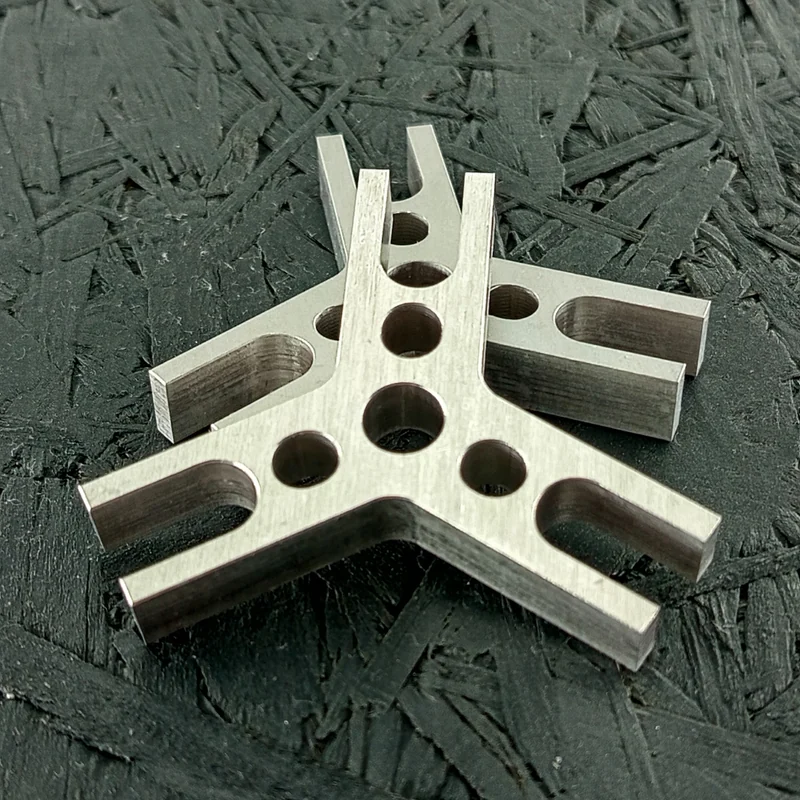

2 pcs. at 15.57 € net Alu 7075 Robot Part 8mm with Holes
CNC machined robot part from 8mm Alu 7075 with precise holes and complex contour.
View details →

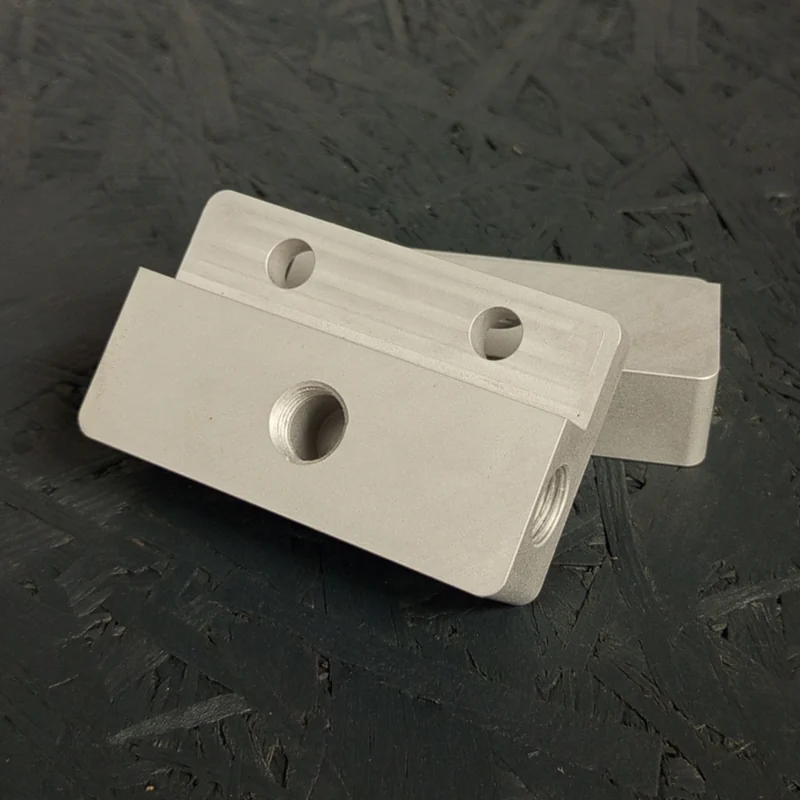

2 pcs. at 18.19 € net CNC Milled Adapter Plate from Alu 5083, 20mm
